Alpha Air Hose Assembly

Alpha

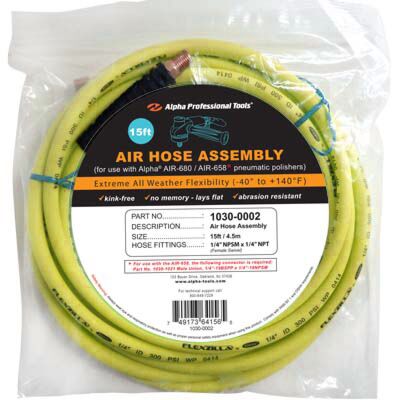

15ft 1/4" Alpha Air Hose Assembly - 1030-0002

Alpha® now offers additional hose lengths for air and water lines. These new hoses are made of Flexzilla® which is a revolutionary material that redefines flexibility. It is a unique Premium Hybrid Polymer material that has all-weather flexibility even in sub-zero temperatures (-40 degrees F to +140 degrees F). Additional characteristics include kink-free under pressure, abrasion resistant, zero memory allowing it to lay-flat exactly where you drop it and they won’t work against you during operation or coiling after use.

Features:

  • All-Weather Flexibility From -40°F To +140°F
  • Kink-Free Under Pressure
  • Lightweight and Abrasion Resistant
  • Zero Memory Allowing It To Lay Flat
  • Made of A Premium Hybrid Polymer Material
  • Comes in Many Lengths
  • Pneumatic and Water Hoses Available
  • Many Connectors Available
  • *Note: Hoses 20ft. Or Longer Are Special Order and Are Not Returnable

Tech Specs:

Part No.SizeDiameterTypeRecommended ForThreads
1030-000215ft. (4.5m)1/4"Air HoseAIR-680/830/850/680UW & PSG-600/6581/4" NPSM x 1/4" NPT Male
1030-001020ft. (6.0m)1/4"Air HoseAIR-680/830/850/680UW & PSG-600/6581/4" NPSM x 1/4" NPT Male
1030-001225ft. (7.6m)1/4"Air HoseAIR-680/830/850/680UW & PSG-600/6581/4" NPSM x 1/4" NPT Male
1030-001430ft. (9.1m)1/4"Air HoseAIR-680/830/850/680UW & PSG-600/6581/4" NPSM x 1/4" NPT Male
1030-001635ft. (10.6m)1/4"Air HoseAIR-680/830/850/680UW & PSG-600/6581/4" NPSM x 1/4" NPT Male
1030-001840ft. (12.1m)1/4"Air HoseAIR-680/830/850/680UW & PSG-600/6581/4" NPSM x 1/4" NPT Male
1030-000315ft. (4.5m)1/4"Water HoseAIR-680/830/850/680UW & PSG-600/6581/4" NPSM x 3/4" 11-1/2" GHT
1030-001120ft. (6.0m)1/4"Water HoseAIR-680/830/850/680UW & PSG-600/6581/4" NPSM x 3/4" 11-1/2" GHT
1030-001325ft. (7.6m)1/4"Water HoseAIR-680/830/850/680UW & PSG-600/6581/4" NPSM x 3/4" 11-1/2" GHT
1030-001530ft. (9.1m)1/4"Water HoseAIR-680/830/850/680UW & PSG-600/6581/4" NPSM x 3/4" 11-1/2" GHT
1030-001735ft. (10.6m)1/4"Water HoseAIR-680/830/850/680UW & PSG-600/6581/4" NPSM x 3/4" 11-1/2" GHT
1030-001940ft. (12.1m)1/4"Water HoseAIR-680/830/850/680UW & PSG-600/6581/4" NPSM x 3/4" 11-1/2" GHT
1030-003115ft. (4.5m)1/2"Air HosePSC-1503/8" NPSM x 3/8" NPT Male
1030-003320ft. (6.0m)1/2"Air HosePSC-1503/8" NPSM x 3/8" NPT Male
1030-003525ft. (7.6m)1/2"Air HosePSC-1503/8" NPSM x 3/8" NPT Male
1030-003730ft. (9.1m)1/2"Air HosePSC-1503/8" NPSM x 3/8" NPT Male
1030-003935ft. (10.6m)1/2"Air HosePSC-1503/8" NPSM x 3/8" NPT Male
1030-004140ft. (12.1m)1/2"Air HosePSC-1503/8" NPSM x 3/8" NPT Male
1030-003015ft. (4.5m)1/4"Water HosePSC-1501/4" NPSM x 3/4" 11-1/2" GHT
1030-003220ft. (6.0m)1/4"Water HosePSC-1501/4" NPSM x 3/4" 11-1/2" GHT
1030-003425ft. (7.6m)1/4"Water HosePSC-1501/4" NPSM x 3/4" 11-1/2" GHT
1030-003630ft. (9.1m)1/4"Water HosePSC-1501/4" NPSM x 3/4" 11-1/2" GHT
1030-003835ft. (10.6m)1/4"Water HosePSC-1501/4" NPSM x 3/4" 11-1/2" GHT
1030-004040ft. (12.1m)1/4"Water HosePSC-1501/4" NPSM x 3/4" 11-1/2" GHT
1030-00251' (0.3m)1/2"AdapterManifold1/2" NPT Swivel
1030-00262ft. (0.6m)1/2"AdapterManifold1/2" NPT Swivel
1030-00273ft. (0.9m)1/2"AdapterManifold1/2" NPT Swivel
1030-005015ft. (4.5m)1/2"MobileManifold1/2" NPT Swivel w/Hose Protector
1030-005220ft. (6.0m)1/2"MobileManifold1/2" NPT Swivel w/Hose Protector
1030-005425ft. (7.6m)1/2"MobileManifold1/2" NPT Swivel w/Hose Protector
1030-005630ft. (9.1m)1/2"MobileManifold1/2" NPT Swivel w/Hose Protector
1030-005835ft. (10.6m)1/2"MobileManifold1/2" NPT Swivel w/Hose Protector
1030-006040ft. (12.1m)1/2"MobileManifold1/2" NPT Swivel w/Hose Protector
1030-020030ft. (9.1m)1/4" Air / 1/8" WaterTwin Water/Air HosePSP-1581/4" BSPT Air / 1/8" BSPT Water
1030-020130ft. (9.1m)1/4" Air / 1/8" WaterTwin Water/Air HosePSP-1141/4" BSPT Air / 1/8" NPT Water
