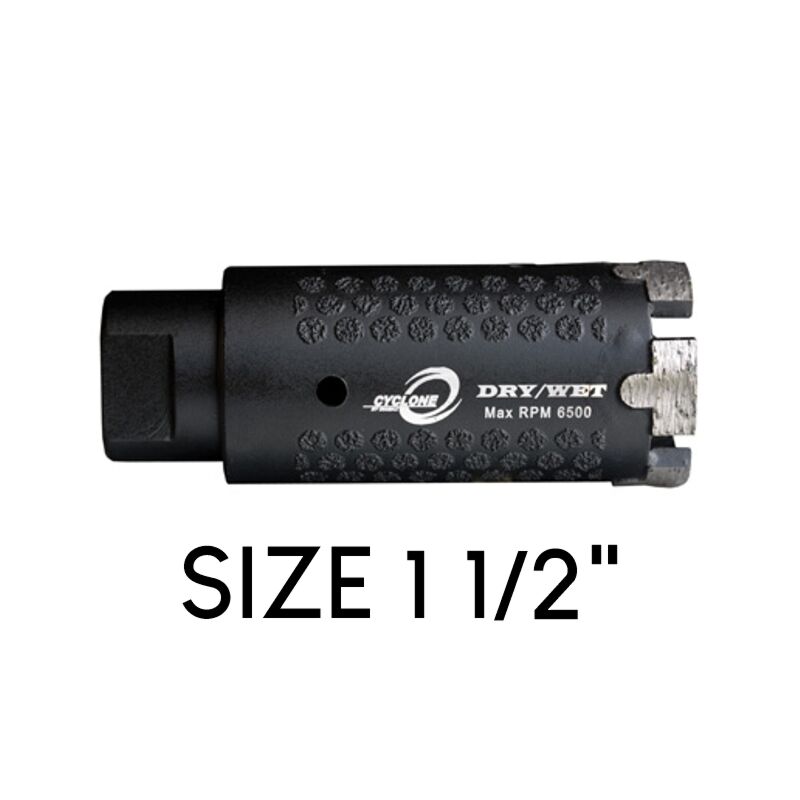

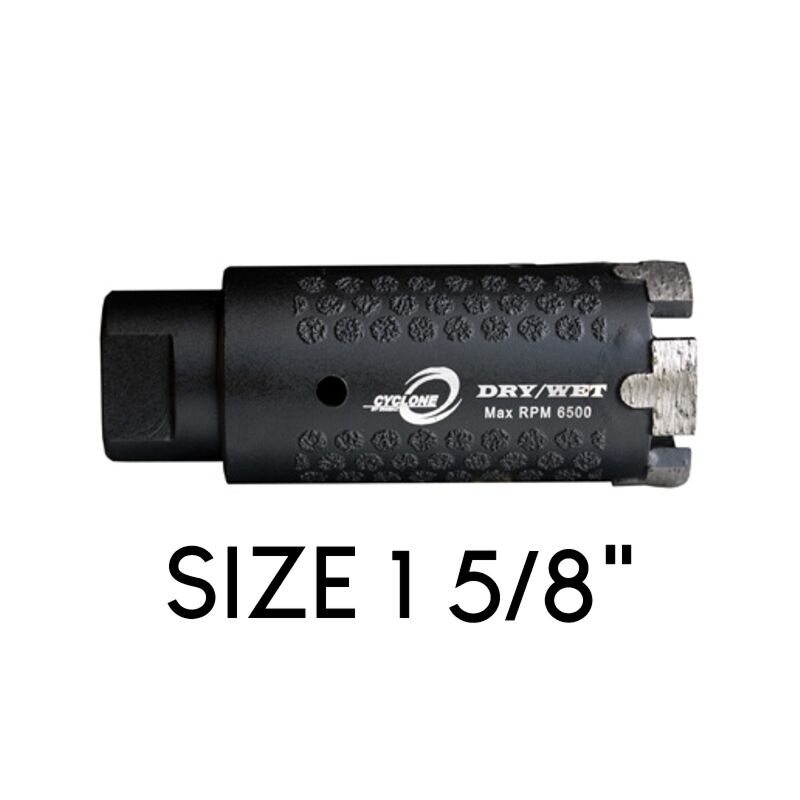

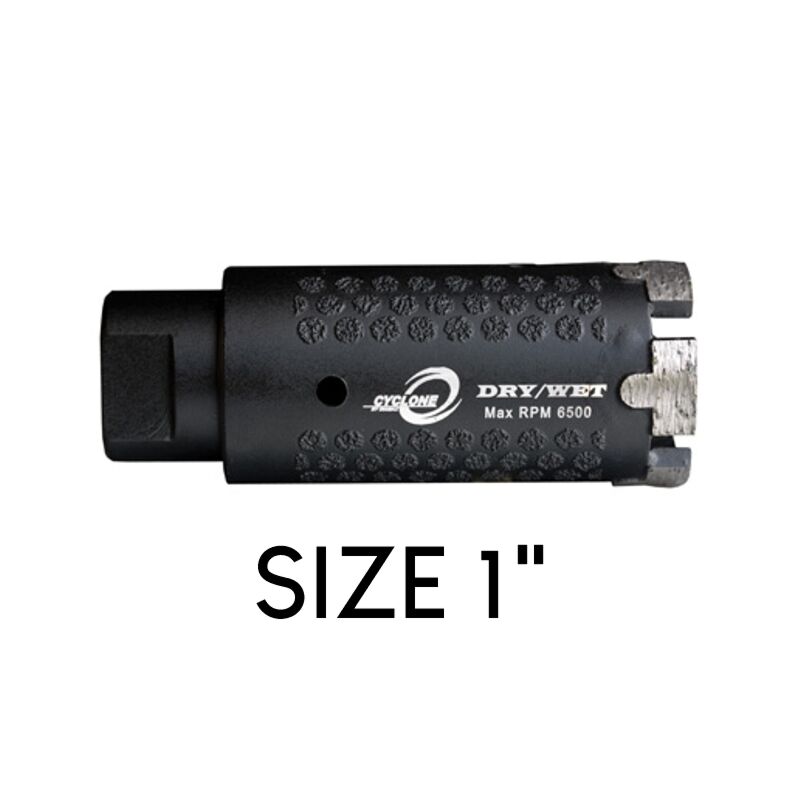

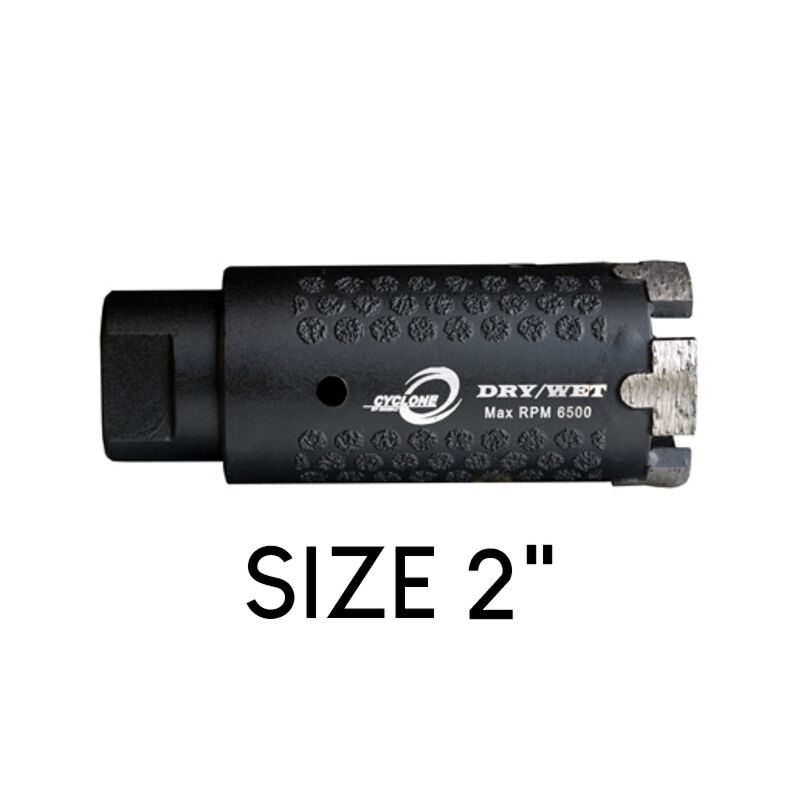

CYCLONE DRY WET SIDE PROTECTION CORE BITS
The Cyclone Dry Wet Side Protection Core Bit is a versatile tool that can be used with an angle grinder, drill, or air polisher. It is designed for drilling through engineered stone or granite.
- Wet or Dry Use: Perfect for use in the field when water is not an option.
- Fast and Efficient: The Cyclone Dry Wet Side Protection Core Bit is an upgrade from our regular T-segment with diamond side protection on outside and inside shaft for ease of drilling and core release
- Wide Range of Sizes: Diamax offers the largest inventory of Cyclone Dry Wet Side Protection Core Bits, ranging from 1 inch to 2 inches in diameter. You can choose the size that best suits your project.
- Unbeatable Durability: Use water to prolong the segment life.
- Thread Size: It comes with a 5/8″ – 11 thread, making it compatible with standard tools.
Works with:
Air Polisher
Angle Grinder
Drill
Wet or DrySuitable for:
Eng. Stone
GraniteTech Specs:
Item# Size Fitting Usable Length RPM Hand Tool
Stone Hard / SoftRPM Drill Press
Stone Hard / SoftCDBYTSD100 1″ 5/8″-11 thread 3″ 3,200 / 6,500 2,000 / 3,200 CDBYTSD114 1 1/4″ 5/8″-11 thread 3″ 4,800 / 6,500 2,000 / 3,200 CDBYTSD138 1 3/8″ 5/8″-11 thread 3″ 4,800 / 6,500 2,000 / 3,200 CDBYTSD112 1 1/2″ 5/8″-11 thread 3″ 4,800 / 6,500 2,000 / 3,200 CDBYTSD158 1 5/8″ 5/8″-11 thread 3″ 4,800 / 6,500 2,000 / 3,200 CDBYTSD134 1 3/4″ 5/8″-11 thread 3″ 4,500 / 5,300 2,200 / 2,700 CDBYTSD200 2" 5/8″-11 thread 3″ 4,500 / 5,300 2,200 / 2,700 About DIAMAX
