CYCLONE DRY WET ULTRA CORE BITS

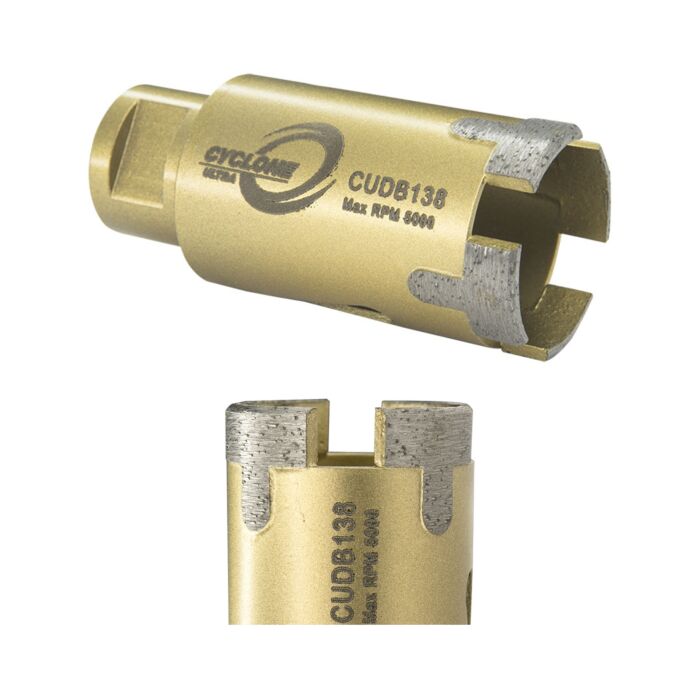

The Cyclone Dry Wet Ultra Core Bit is a versatile tool that can be used with an angle grinder, drill, or air polisher. It is designed for drilling through various materials, including engineered stone, granite, porcelain, quartzite and ultra-compact surfaces.

  • Wet or Dry Use: Whether you’re working with water or without, this core bit performs exceptionally well. When used with water, it can drill through engineered stone, granite, marble,
    porcelain, quartzite, ultra-compact.
  • Fast and Efficient: Specific grit & bond composition provides a fast clean hole through porcelain & other ultra compact material. Featuring thin beveled segments for ease of entry into material
  • Wide Range of Sizes: Diamax offers the largest inventory of Cyclone Dry Wet Ultra Core Bits, ranging from 1 inch to 4 inches in diameter. You can choose the size that best suits your project. Shortened overall length for added control
  • Vacuum-Brazed Side Protection: The core bit features vacuum-brazed side protection, ensuring longevity and efficient drilling.
  • Thread Size: It comes with a 5/8″ – 11 thread, making it compatible with standard tools.

Works with:

air-polisher
Air Polisher
angle-grinder
Angle Grinder
wet-or-dry
Wet or Dry

Suitable for:

engineered-stone
Eng. Stone
porcelain
Percelain
granite
Granite
quartz
Quartzite
marble
Marble
ultra-compact
Ultra Compact

Tech Specs:

Item#SizeFittingUsable LengthMax. RPM
CUDB1001″5/8″-11 thread2.25″5000
CUDB1141 1/4″5/8″-11 thread2.25″5000

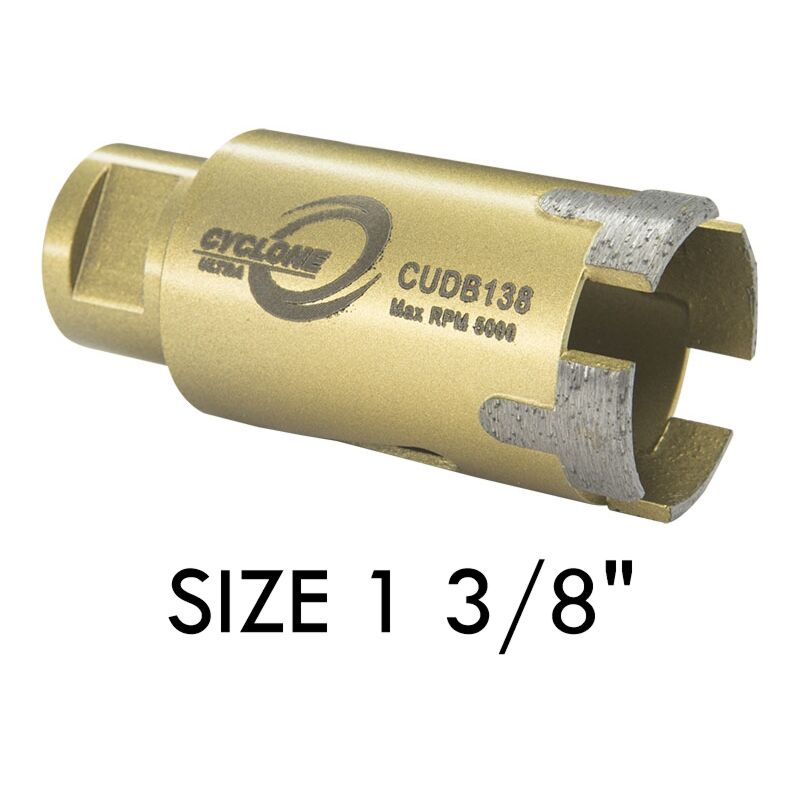

CUDB1381 3/8″5/8″-11 thread2.25″5000

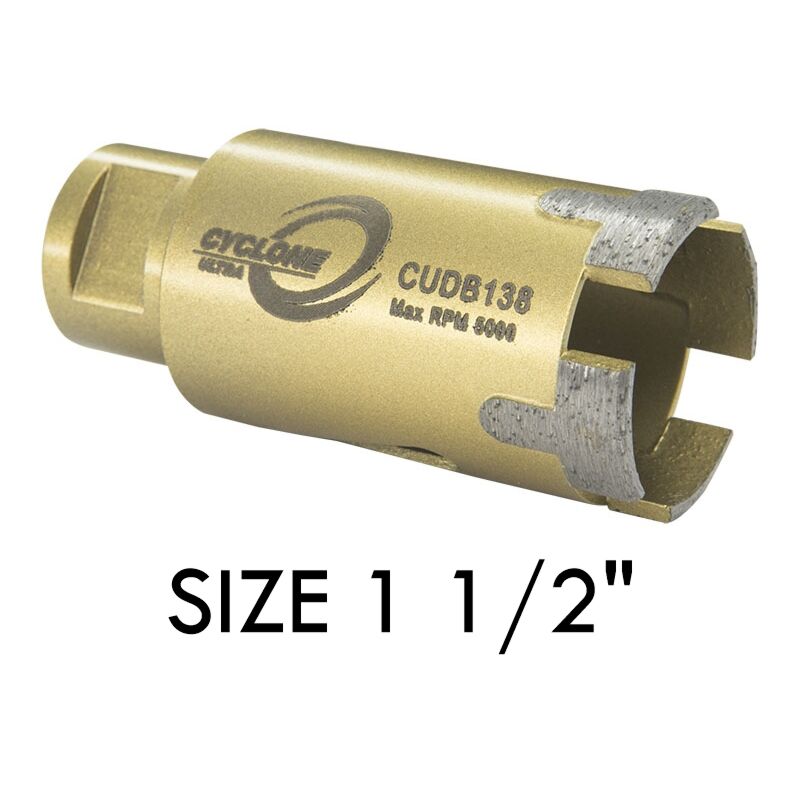

CUDB1121 1/2″5/8″-11 thread2.25″5000

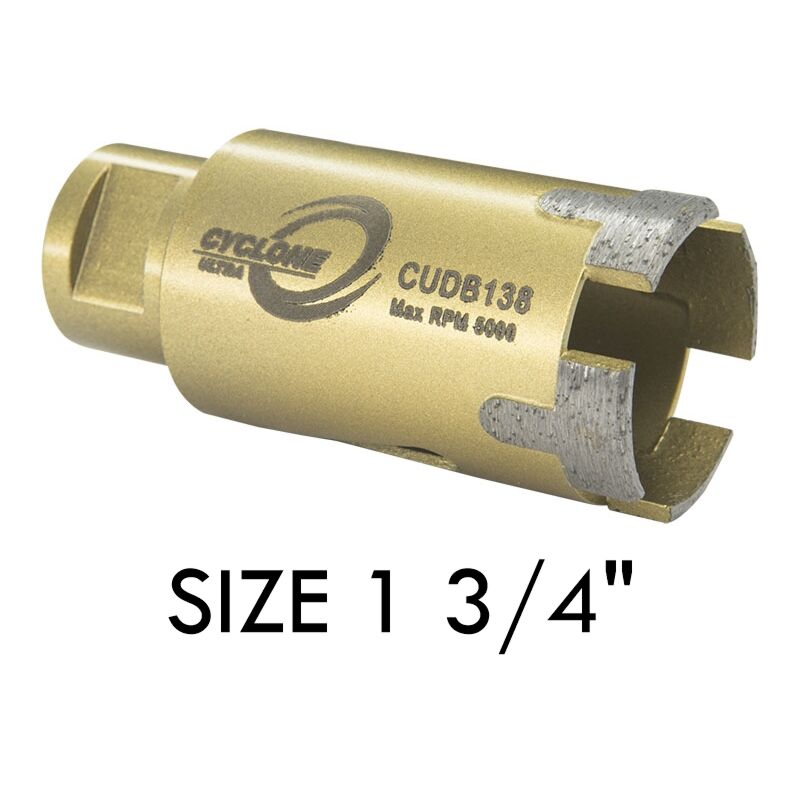

CUDB1341 3/4″5/8″-11 thread2.25″5000
CUDB2002″5/8″-11 thread2.25″5000
CUDB2142 1/4″5/8″-11 thread2.25″5000
CUDB2122 1/2″5/8″-11 thread2.25″5000

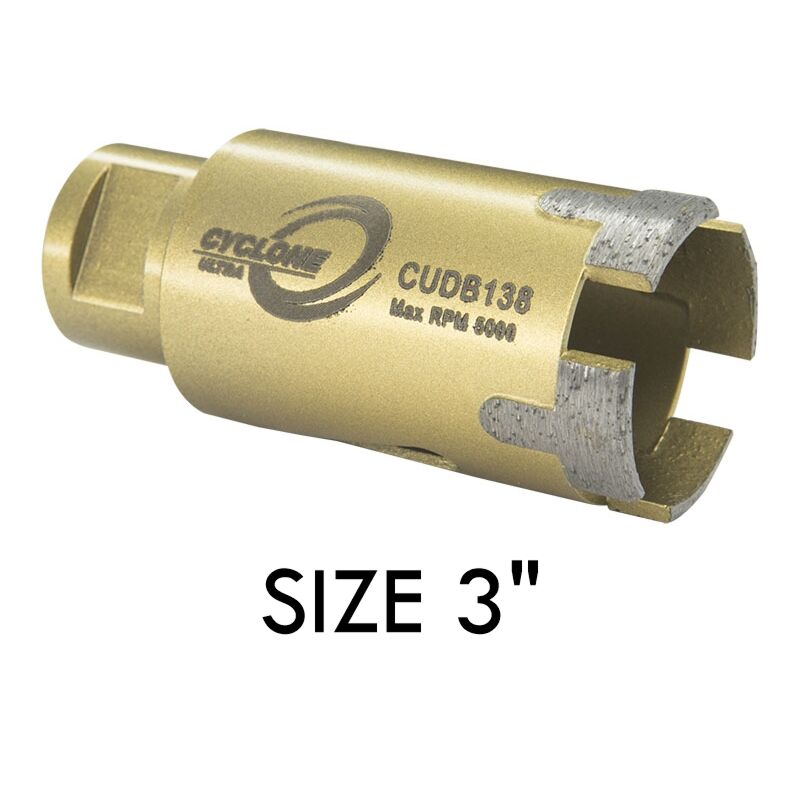

CUDB3003″5/8″-11 thread2.25″5000
CUDB4004″5/8″-11 thread2.25″5000

About DIAMAX

OUR GOAL IS TO MAKE THE JOB EASIER, FASTER AND SAFER FOR THE END USER.

Diamax Industries, Inc. facilitates the growth of diamond tool distributors by supplying their needs immediately with the most reliable products available. The first company in the industry to sell ultra-high performance tools at a mid-range cost, Diamax manufactures, imports and wholesales diamond tooling for use in the stone countertop fabrication and tile industries. Their long-standing relationships with multiple manufacturers overseas allow them to continuously develop and source the best products for tool distributors all over the world. Same-day shipping and a return ratio of less than 1% over the life of the company is Diamax’s ongoing mission. Columbia Stone Products is a premium authorized distributor of all Diamax products.

about-diamax
More Information
Model#CUDB100, CUDB114, CUDB138, CUDB112, CUDB134, CUDB200, CUDB214, CUDB212, CUDB300, CUDB400
