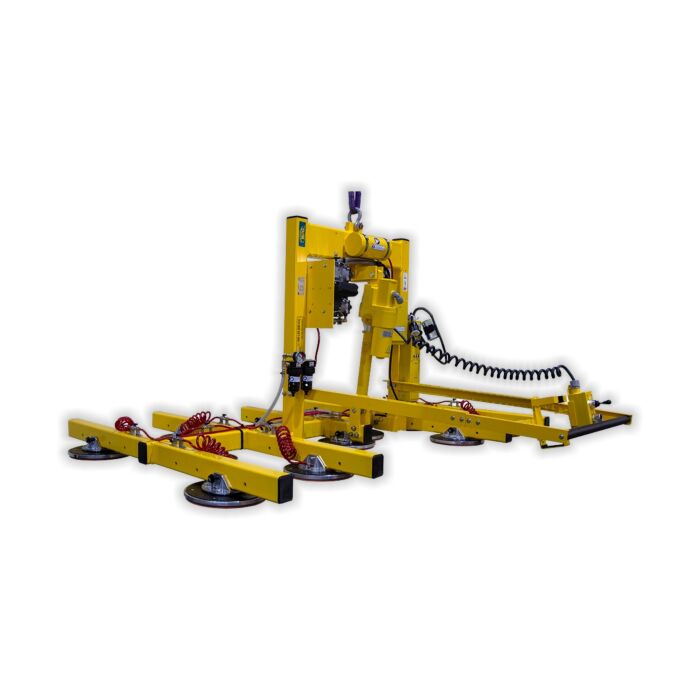

WPG PT10 LIFTER SERIES

Models PT1410TAIR Maximum Load Capacity 1,500 lbs [680 kg] Standard Pad Spread Minimum: 11-3/4" x 32-3/4" [30 cm x 83 cm] Maximum: 60-3/4" x 90-3/4" [154 cm x 230 cm] Number/Size of Pads 14 / 10" [25 cm] diameter vacuum pads with replaceable sealing rings Load Movement Power tilt, 90° between upright and flat Lifter Weight (for Air-Power System) 545 lbs [248 kg] Standard Operating Power Compressed air, 11 SCFM [311 liters/min] @ 80 psi [552 kPa] Apply/Release Times 10 seconds/ 3 seconds (approximately) Time for 90° Tilt 8 seconds (approximately) Tilt Duty Continuous Alternative Power Systems (see next page) AC power system (PT1410TAC) DC power system (PT1410TDC) STANDARD FEATURES Individual Pad Shutoffs Enable lifter to handle various load sizes and shapes by shutting off airflow from specific vacuum pads Replacable Sealing Rings Adhere to textured surfaces and resist abrasion from grit and other particles Spring-Mounted Vacuum Pads Automatically adjust to match the angle of load surfaces, easing attachment Vacuum Gauge Features green and red zones, to clearly indicate whether vacuum level is sufficient for lifting Vacuum Reserve Tank Reduces attachment time and extends time for supporting loads during a power outage Vacuum Line Filters Prevent contaminants from damaging the vacuum generating system Movable Pad Mounts Allow vacuum pads to be moved without tools, adapting the lifter to various load sizes Control Handle Extensions Enable the operator to maintain control of the load while remaining safely outside of its tilt path Two-Action, Blow-Off Release Uses two separate motions to avoid accidental release, and reverses airflow to quickly release loads without after-stick
